Elitar Pipe

Classics never go out of style. The Elitar Pipe is cool, sophisticated and elegant in appearance. It brings you back to the old days with its timeless classic design and premium finish. Powered by single 18650 battery with 75W maximum output, Elitar presents a 0.66-inch OLED screen, having TC/Power/BYPASS/TCR modes available. E-liquid filling can be easily achieved by simply removing the top cap and injecting into the side holes. Featuring an upgradeable firmware, the Elitar Pipe can perfectly satisfy you on a daily basis. The innovative leak resistant cup design atomizer allows to enjoy the best vaping experience ever.

Standard Configuration:

• 1 * Elitar Battery (without cell)
• 1 * Elitar Atomizer
• 1 * BF SS316-0.5ohm DL.
• 1 * LVC Clapton-1.5ohm MTL.
• 1 * USB Cable
• 1 * User Manual
• 1 * Warranty Card
• 1 * Warning Card

Specification:

• Size: 38.00mm (W)*147.50mm (L)*36.50mm (H)
• Diameter for the atomizer: 22.00mm
• Output mode: VW/TC(Ti, Ni, SS316)/Bypass/TCR(M1, M2, M3)
• Output Wattage: 1-75W
• E-liquid Capacity: 2.0ml
• Resistance Range: 0.05-1.5ohm for TC/TCR mode
• 0.1-3.5ohm for VW/Bypass mode
• Temperature Range: 100-315°C/ 200-600°F

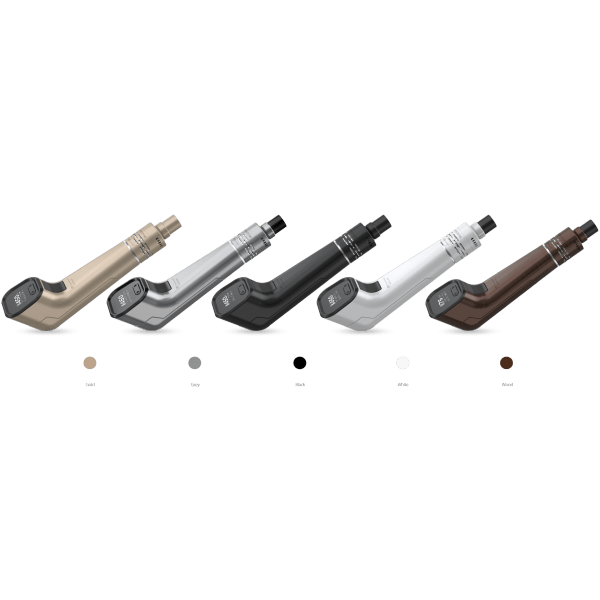

• Colors: Gold, Grey, Black, White, Wood

Classic combines with technology

Originated from the pipe, we combine it with Joyetech latest e-cigarette technology and make it into one mod - Elitar Pipe. The pipe design was reserved in maximum still you're able to enjoy healthy vaping on the meantime.

Simple and clear

Elitar Pipe features a 0.66-inch large OLED screen with all the parameters displayed. It is simple and clear to read, operate and vape.

Integrated design with premium finish

The screen and fire button are integrated with the Elitar Pipe, making it a totally pipe device. It is smooth and comfortable with its classic and premium finish.

Top filling and top airflow control

The Elitar atomizer adopts top filling and top airflow structure which enables you to refill the e-liquid with great convenience. Simply uninstall the top cap from the airflow ring, then inject the e-juice into the two side holes (not the vent pipe) directly.

Replaceable battery and magnetic cover

Elitar Pipe is power by single 18650 battery with 75W maximum output wattage. The magnetic battery cover allows to replace the battery with ease.
We kindly recommend using high-rate 18650 battery with continuous discharge current (CDC)25A.

Innovative leak resistant cup design

The completely leak resistant cup-style tank reservoir allows the top section and coil to be removed and as one solid unit. Coil replacement and juice fill can be achieved by removing this top section from the cup.

The stainless steel SS316 0.5ohm head is mainly for direct-to-lung (DL) inhale. It can be used under TCSS, VW and TCR modes as you prefer.

LVC (Liquid Valve Control) Clapton-1.5ohm head applies the liquid valve control system. Simply rotate the bottom ring to adjust the valve.

Detachable and washable structure

With its special structure, the Elitar atomizer can be easily detached and is able to wash separately.

Intelligent temperature control system with multiple modes

Note:

• 1. TCSS mode in Elitar is compatible with stainless steel 316 coil ONLY.
• 2. TCR mode is a special temperature control mode where you can customize the tcr value for certain temperature control coils (Ni/Ti/SS). Download the full guide to tcr.

Function and protection

Firmware Upgradeable

Elitar Pipe comes with the upgradeable firmware which enables your device always up-to-date.

Multiple atomizer heads can be applied

Exquisite spring loaded 510 thread

Applied with stainless steel 510 thread with spring loaded and wide border fitting for large capacity atomizers.

Charging & Upgrading

We kindly suggest you take out the battery and charge it with a stand alone charger. The micro USB port is on the right side on top. Connect it with a micro USB cable to charge or upgrade your device.
